FREE DELIVERY all over Europe

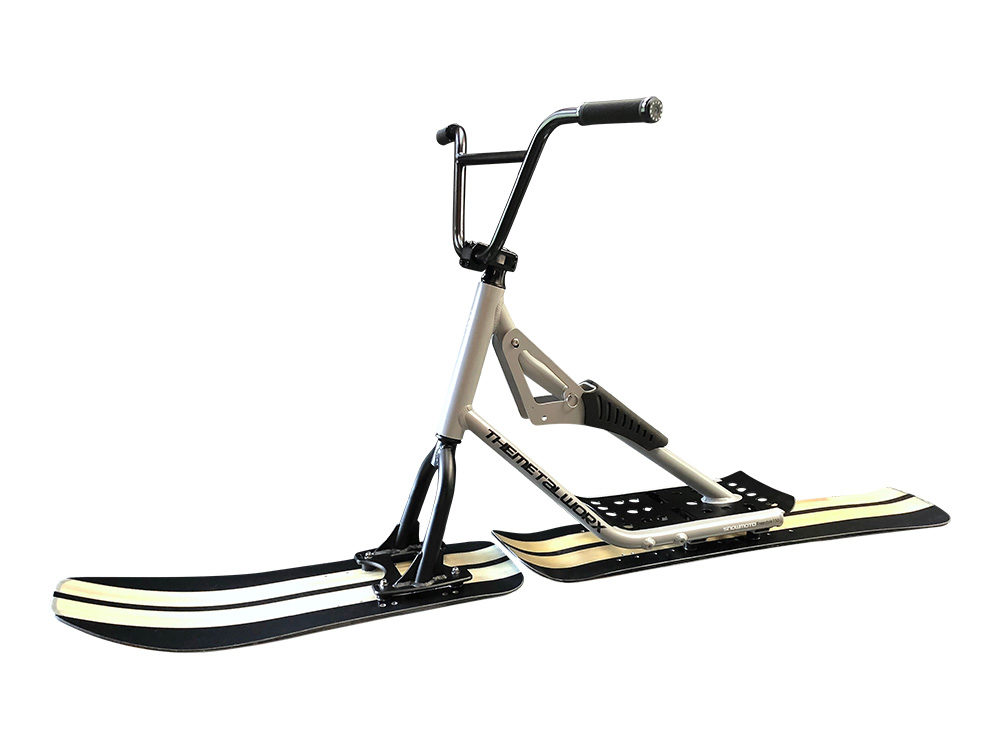

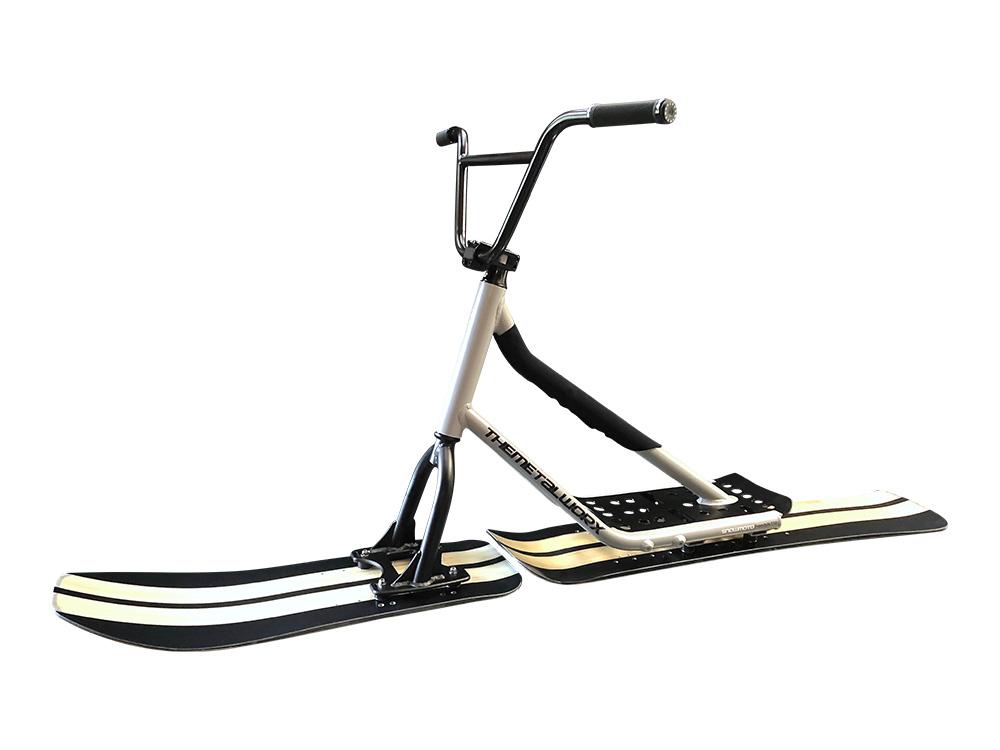

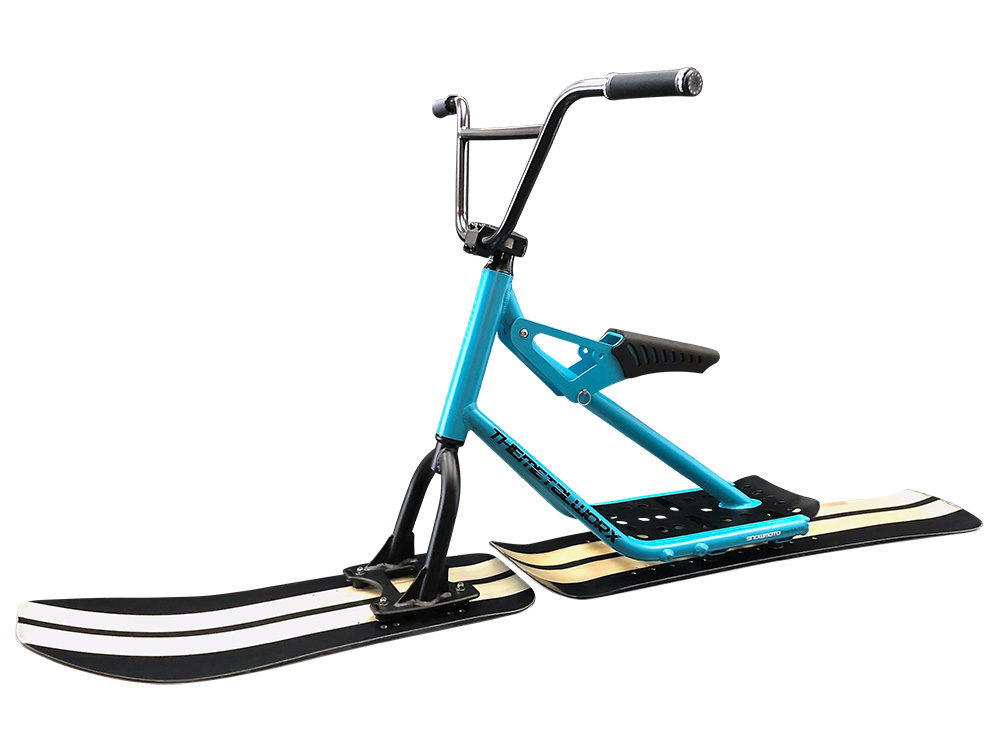

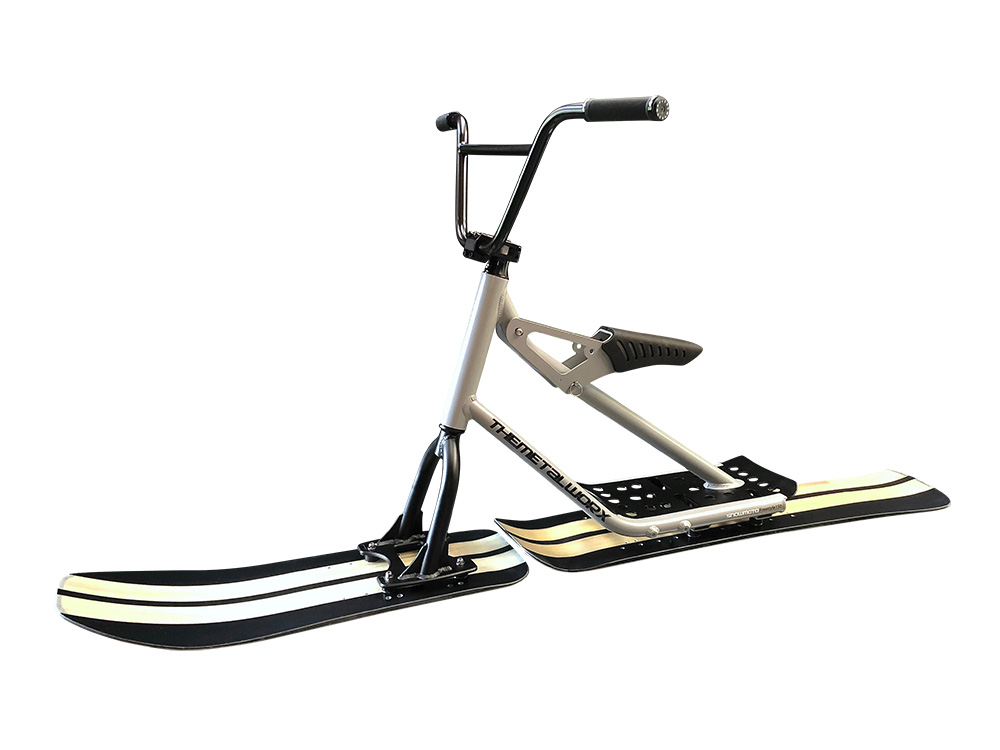

From carving beginner to expert (intermediate), you can enjoy a sharp turn. The most popular “EDGE” in the Snowmoto series. The frame adopts TYPE-III “FREESTYLE 72/150” so that the head angle is 72 ° as usual and you can enjoy an aggressive sliding in a pressure snow burn. By changing the width of the active track from 230mm to 150mm, the rear board (front side) can be flexed and bent to the maximum, and you can enjoy a quick and compact turn. The headset has been upgraded to the ahead type 1-1 / 8 semi-integrated (zero stack) headset. By using parts with higher accuracy, the handlebar is not blurred and smoother rotation is achieved. The handlebar uses an aluminum 9-inch 780mm wide bar to accommodate wide boards. Easy turning with a little force. (The width of the bar can be cut to the desired length according to the height and riding style of the owner.)





Frame color: Mat turquoise blue, matte gray
Board color: black
Stem color: black, silver
RST MTB anti-skid pin set
Black EVA seat pad


Front/Rear board: F / Flat R / Flat
Board size: length 1830 mm, front board width  290mm ·  rear board width  300mm
Board weight: 3.30kg
Core: aspen & Maple
Sidewall: ABS
Sole: P-TEX4000 graphite (Sintered)
Flex: front board / medium· rear board/ medium
Top: TPU (Thermoplastic polyurethane) UV Coating

Cruising & Carving



Frame material: 6061 T6 alloy
Seat: 6061 T6 alloy
Fork: 6061 T6 alloy
Handle bar: 9 inch 770mm Alloy 6061 T6
Size: Active truck : 230mm
Frame size: Length: 880mm Width: 250mm Height: 830mm
Weight: Frame: 2,650g Fork: 1,200g Seat boom: 480g Handlebar: 680g Stem: 320g (silver)


Frame color

Mat turquoise blue, Mat khaki, Stealth Black
