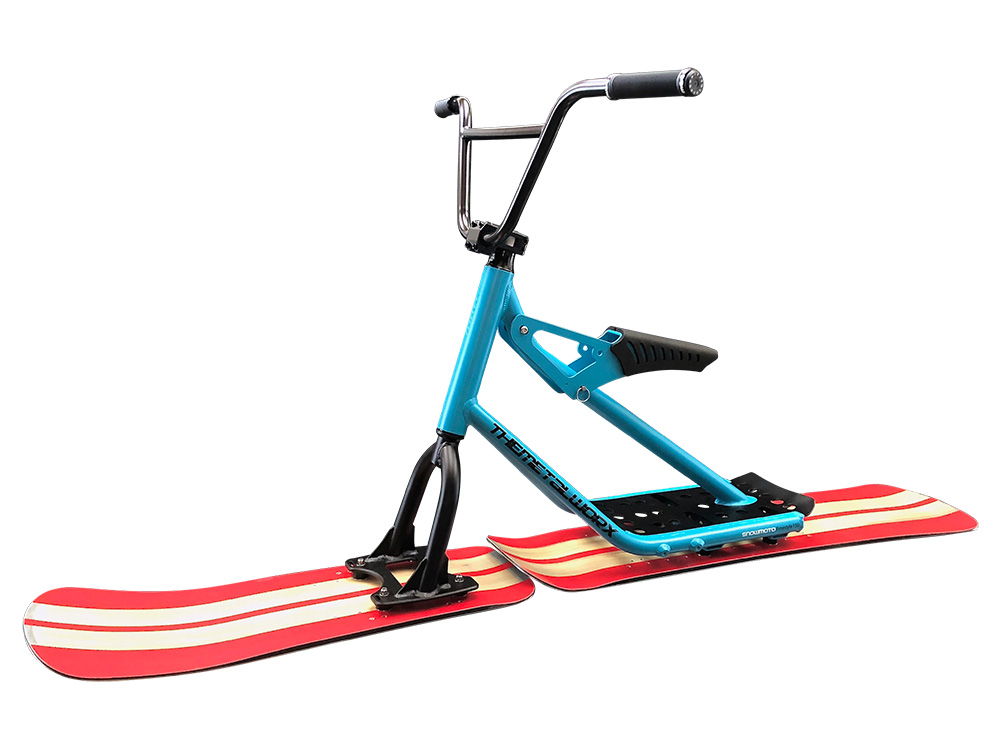

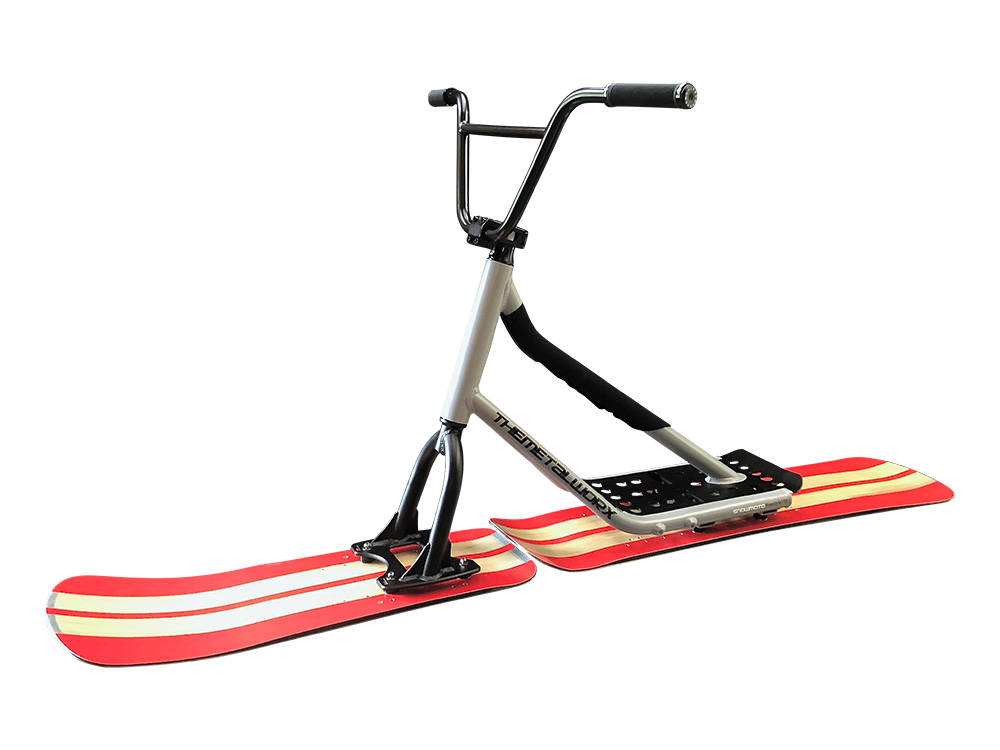

TMW Katana Snowmoto

1,249.00

FREE DELIVERY all over Europe.

******************************

As the name suggests, it is an elite (advanced) model that has a sharp cutting edge like a sword and can dig deeply into the snow. Uses a hammerhead design not found in previous snow bikes. By maximizing the effective edge length unique to a hammerhead board, it has become possible to enjoy a sharp turn that sticks to the snow surface. The frame adopts TYPE-III “FREESTYLE 72/150”, which has a head angle of 72 ° as usual and allows you to enjoy aggressive sliding with a pressure snow burn. By making the width of the active track 150mm, the rear board (front side) bends and bends to the maximum, and you can enjoy a quick and compact turn. The headset is upgraded to a 1-1 / 8 semi-in and a graded (zero stack) headset. By using parts with higher accuracy, the handlebar is not blurred and smoother rotation is achieved. The handlebar uses an aluminum 9-inch 780mm wide bar to accommodate wide boards. Easy turning with a little force. (The width of the bar can be cut to the desired length according to the height and riding style of the owner.)





DETAILS

Frame color: Mat turquoise blue, matte gray
Board color: black
Stem color: black, silver
RST MTB anti-skid pin set
Black EVA seat pad


BOARDS

Front/Rear board: F / Flat R / Flat
Board size: length 1830 mm, front board width  305mm ·  rear board width  300mm
Core: aspen & Maple
Sidewall: ABS
Sole: P-TEX4000 graphite (Sintered)
Flex: front board / hard· rear board/ hard
Top: TPU (Thermoplastic polyurethane) UV Coating

Super Carving and Freeride




FRAME & FORK

Frame material: 6061 T6 alloy
Seat: 6061 T6 alloy
Fork: 6061 T6 alloy
Handle bar: 9 inch 770mm Alloy 6061 T6
Size: Active truck : 230mm
Frame size: Length: 880mm Width: 250mm Height: 830mm
Weight: Frame: 2,650g Fork: 1,200g Seat boom: 480g Handlebar: 680g Stem: 320g (silver)





Frame color

Mat turquoise blue, Gray
